One common example of this is confusion around background strain for GEM and mutant lines. While it is common now to make a desired mutation directly in a strain of interest - such as the popular C57BL/6 (B6) inbred strain -- during the early days of murine genetic engineering, most mutations were made on backgrounds chosen for their ease of genetic manipulation and not necessarily for their value as a strain of interest. For example, many mutations were made in embryonic stem (ES) cells derived from the 129P2 inbred strain, which produced robust ES cells. But researchers preferred to study those mutations on the B6 background, not the 129P2 background.
So how can those mutations be transferred to a new strain?

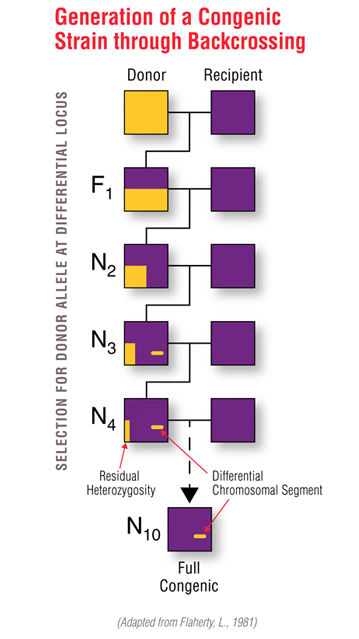

Backcrossing to Generate Congenic Mice
Mutations of interest can be moved from one background strain to another through backcrossing, which generates congenic mice primarily derived of the recipient background - B6, for example - containing the mutation of interest and a linked section of its chromosome derived from the donor strain. Repeatedly mating the donor to the recipient strain and selecting for offspring with the desired mutation, typically through genotyping, removes ~50% of the donor genome with each successive generation. Five generations of backcrossing will produce a line ~94% derived from the recipient genome.Five generations is the minimum number of crosses to generate a congenic mouse model. At the tenth backcross, approximately 99.9% of the genome is derived from the recipient strain.
While traditional backcrossing is still used, this process can be accelerated via selecting breeders in each backcross generation which have the highest percentage of recipient genome. This is commonly called speed congenics.
Congenic Mouse Nomenclature
All of this background information is encoded in congenic strain nomenclature, allowing informed researchers to rapidly assess the utility of a given rodent model to their precise area of study.For example, consider the RAGN12 model. The original Rag2 knockout mutation was made in CCE ES cells derived from the 129S6 inbred strain. The resulting mutant mice were on the 129S6 background. As researchers wanted to be able to study this mutation on the popular B6 background, the line was backcrossed 12 generations to C57BL/6NTac to make a congenic strain. Over 99.9% of the genome of the RAGN12 line is derived from the C57BL/6NTac inbred strain, with some small residual genome contribution from the 129S6 strain, primarily flanking the Rag2 mutation.
The nomenclature for this line - B6.129S6-Rag2tm1Fwa N12 - tells this story quite well. Here is the breakdown:
Instant Origin Information
Taconic posts origin information for all of our congenic lines, but researchers should be careful to read through the full origin before assessing a model. For example, here is the origin for the RAGN12 line:Researchers familiar with congenic strain nomenclature, on the other hand, get the full picture at a glance.
Mouse Model Nomenclature Guides Control Selection
Wild type controls for GEM mice should be as close as possible to the GEM line of interest in terms of background genetics. For congenic lines where both wild type and transgenic mice are produced from the same matings, the wild types produced in that manner are often the best controls. Many GEM lines are maintained via matings of homozygous females and males, however, meaning no wild type littermates are produced. In that case, a review of the nomenclature and origin is in order to determine the best wild type control.As an example, let's look at the CETP line: B6.SJL-Tg(APOA-CETP)1Dsg N11.
The nomenclature indicates the line is congenic on B6, but does not provide sufficient information to determine which B6 subline. As B6 sublines differ quite a bit, it is important to choose the closest subline. A review of the origin provides clarity:
