Also known as: Tfrc, TFRC, Tfr, hTfr, CD71, hCD71, Tfr1, hTfr1
hTFRC Mouse
Also known as: Tfrc, TFRC, Tfr, hTfr, CD71, hCD71, Tfr1, hTfr1
A humanized transferrin receptor mouse model for evaluation of TfR1-engineered central nervous system therapeutics. Enables blood-brain barrier transcytosis without clinical signs of anemia.
Application Areas:
| Model No. | Nomenclature | Genotype |
|---|---|---|
| 23236-M | C57BL/6NTac-Tfrctm2618.1(TFRC)Tac | hu/hu |
| 23236-F | C57BL/6NTac-Tfrctm2618.1(TFRC)Tac | hu/hu |
Nomenclature: C57BL/6NTac-Tfrctm2618.1(TFRC)Tac
Orders by weight: Taconic cannot accept orders by weight for this model. Please note that shipments may contain animals with a larger weight variation.
Recommended Controls
The recommended control for this model is C57BL/6NTac.
Origin
The hTFRC mouse was developed in partnership with Boehringer Ingelheim GmbH. The model was created by homologous recombination to generate a constitutive humanization of the full extracellular domain (aa 89-760) of the transferrin receptor (Tfrc) in the C57BL/6NTac background. The targeting vector was generated using mouse (RPCIB-731) and human (RPCIB-753) BAC clones and transfected into B6NTac ESCs. Homologous recombinant clones were isolated using double positive selection flanked by FRT (NeoR) and F3 (PuroR) sites inserted into the human intron 4 and downstream of the mouse 3’ untranslated region (UTR). The humanized allele was obtained after Flp-mediated removal of these selection markers. The resulting chimeric mouse-human TFRC gene (protein is a fusion between mouse cytoplasmic plus transmembrane and human extracellular domains) expresses under the control of the endogenous mouse Tfrc promoter. Residual recombination sites are located in non-conserved regions of the genome. Taconic received homozygous stock in 2024 and backcrossed to B6NTac. The colony is maintained through the mating of homozygotes.
Initial Publication:
Transit, Housing & Welfare
Need more info? Click the live chat button or Contact Us
Genetic humanization of murine Tfrc gene in hTFRC mice
A.
B.
Figure Legend: (a) Genetic locus map and (b) diagram of transferrin receptor 1 (TfR1) following humanization of the Tfrc locus in the Taconic hTFRC B6 mouse model. Orange indicates the region of humanization (aa 89-760, exons 4-19). The intracellular and transmembrane domains remain the native murine sequence (exons 1-3; blue).

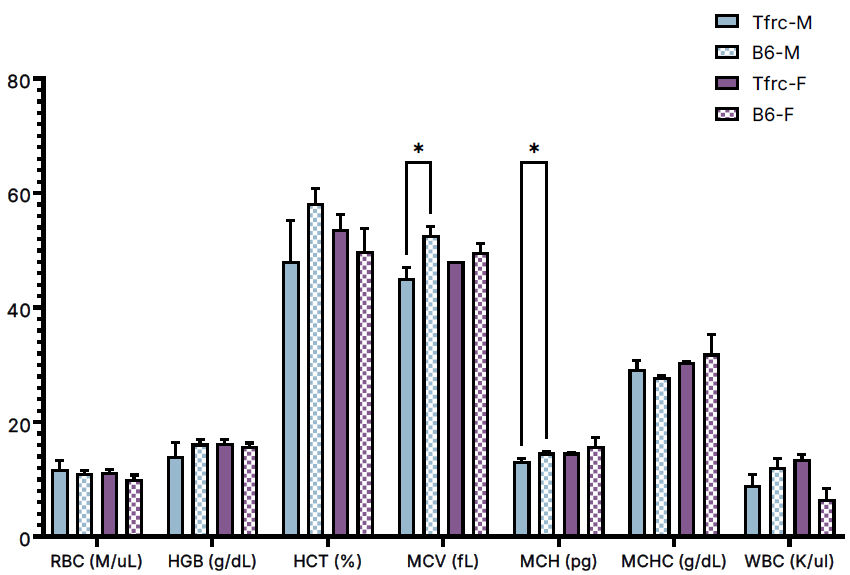

hTFRC mice exhibit normal RBC and hemoglobin with minimal microcytic anemia in males
Figure legend: Taconic B6 male mice expressing humanized transferrin receptor Tfr1 (hTFRC; item 23236) exhibit minimal subclinical microcytic anemia, as evidenced by decreased MCV but normal RBC and hemoglobin when compared to standard B6 mice.
Complete blood count (CBC) analysis included count of red blood cells (RBC), hemoglobin concentration (HGB), percent hematocrit (HCT), mean corpuscle volume (MCV), mean corpuscle hemoglobin (MCH) and mean corpuscle hemoglobin concentration (MCHC).

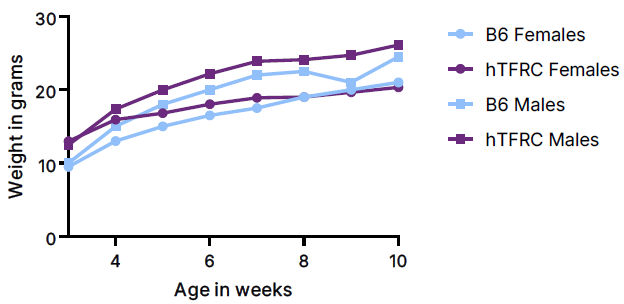

Body weight hTFRC and B6
Figure legend: Taconic hTFRC (23236) male and female mice (n=10) were weighed weekly from 3 until 10 weeks of age. Data represents the mean weight in grams at each time point. B6 mouse data (mean weight values from model growth curve) were captured at a different time but are provided for comparison purposes and illustrate no detrimental growth phenotype due to humanization of the Tfrc gene.
Conditions of Use for Taconic Transgenic Models™
Taconic Transgenic Models™ (Models) are produced and distributed under rights to patents and intellectual property licensed from various institutions. Taconic sells the Models to purchasers, grants to each purchaser a right under Taconic's rights in such licensed patents and intellectual property to use the purchased Model in consideration of purchasers' acknowledgement of and agreement to the Terms and Conditions for Taconic Models, Products and Services and the following terms of use:
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | US$365.00 |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | US$365.00 |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | 344,00 € |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | 344,00 € |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | kr.2.570,00 |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | kr.2.570,00 |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | US$185.00 |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | US$185.00 |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | 174,00 € |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | 174,00 € |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | kr.1.303,00 |
| Age in Weeks | Quantity 1 - 999 |
|---|---|
| 3 to 10 | kr.1.303,00 |
View the production locations(s) and the accompanying current IHMS™ Health Report and Taconic Health Standard for this model
Connect directly with a member of our Scientific Solutions team who can help you select the most appropriate model and maximize your experimental success.
