Scientific Poster: Animal Models of Alzheimer's Disease - History of Animal Models for Therapeutic Discovery

This poster was presented at the Society for Neuroscience 2025, the world’s largest gathering of neuroscientists, bringing together researchers, clinicians, and industry to share the latest discoveries about the brain and nervous system.

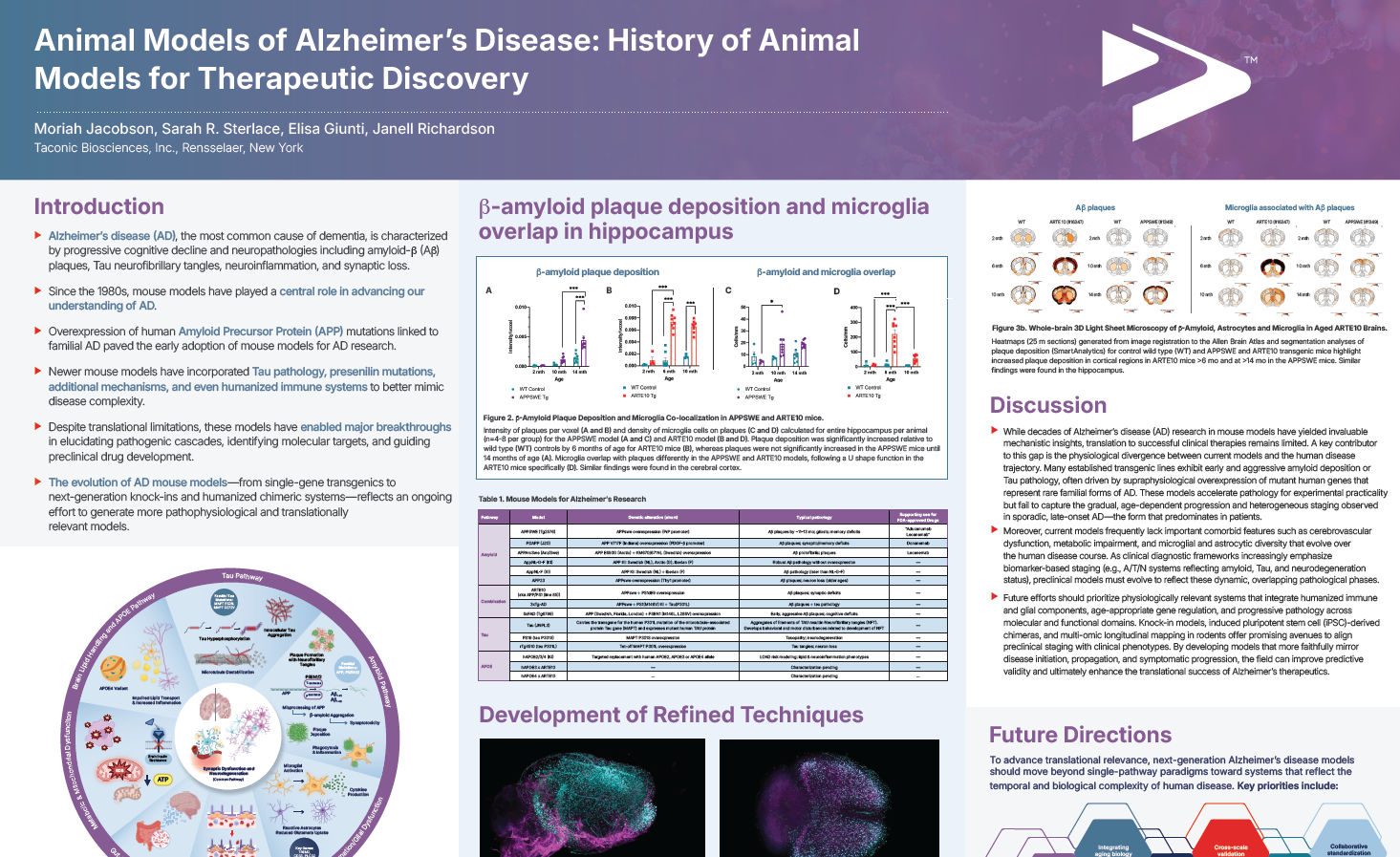

Scroll through the poster below, or download it to learn more.

Animal Models of Alzheimer's Disease: History of Animal Models for Therapeutic Discovery

Moriah Jacobson, Sarah R. Sterlace, Elise Giunti, Janell Richardson

Taconic Biosciences, Inc., Rensselaer, New York

Introduction

  • Alzheimer's Disease (AD), the most common cause of dementia, is characterized by progressive cognitive decline and neuropathies including amyloid-β (Aβ) plaques, Tau neurofibrillary tangles, neuroinflammation, and synaptic loss.
  • Since the 1980's, mouse models have played a central role in advancing the understanding of AD.
  • Overexpression of human Amyloid Precursor Protein (APP) mutations linked to familial AD paved the early adoption of mouse models for AD research.
  • Newer mouse models have incorporated Tau pathology, presenilin mutations, additional mechanisms, and even humanized immune system to better mimic disease complexity.
  • Despite translational limitations, these models have enabled major breakthroughs in elucidating pathogenic cascades, identifying molecular targets, and guiding preclinical drug development.
  • The evolution of AD mouse models—from single-gene transgenics to next-generation knock-ins and humanized chimeric systems—reflects an ongoing effort to generate more pathophysiological and translationally relevant models.

Results

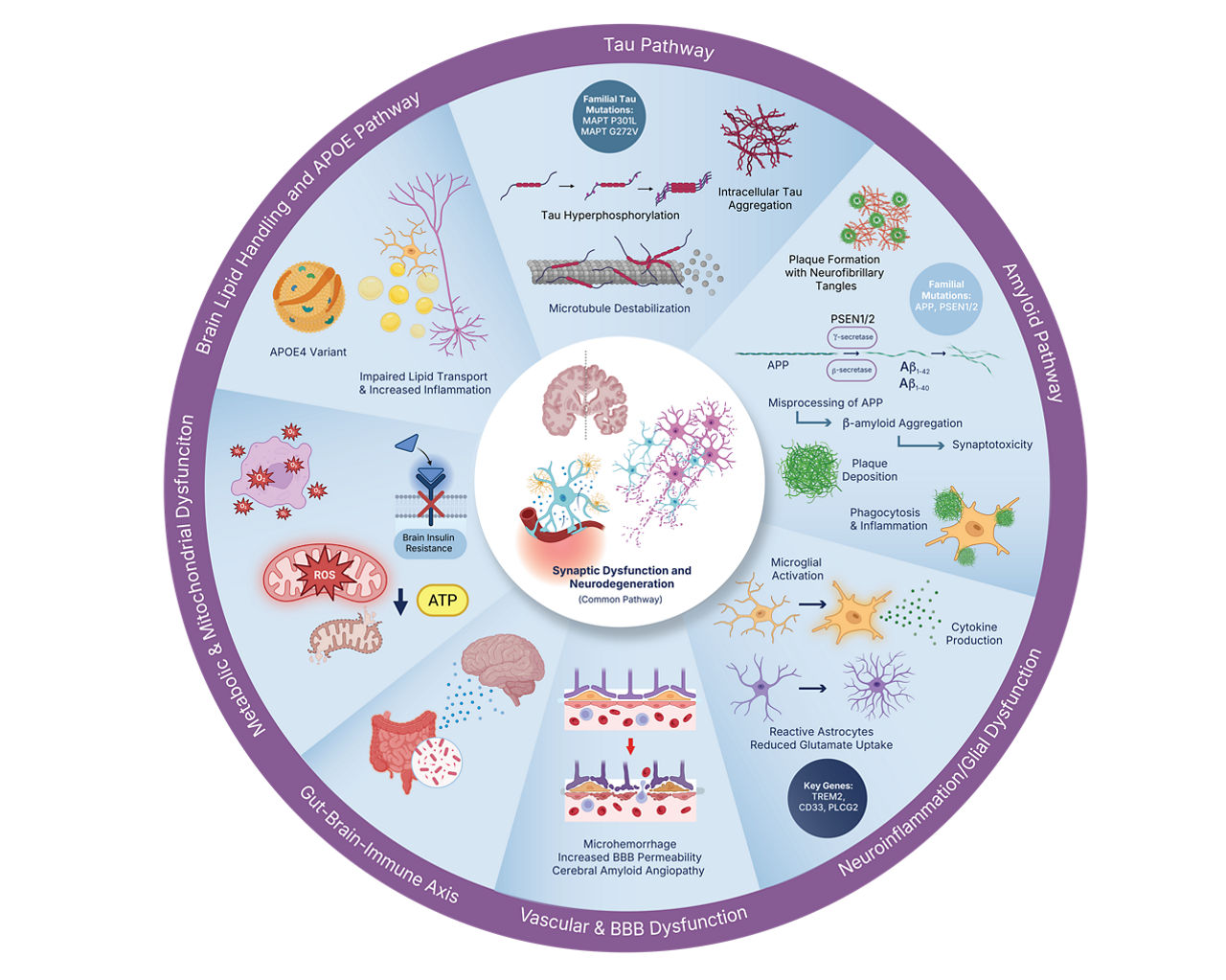

Figure 1. Major Mechanistic Hypotheses in Alzheimer's Disease


β-amyloid plaque deposition and microglia overlap in hippocampus

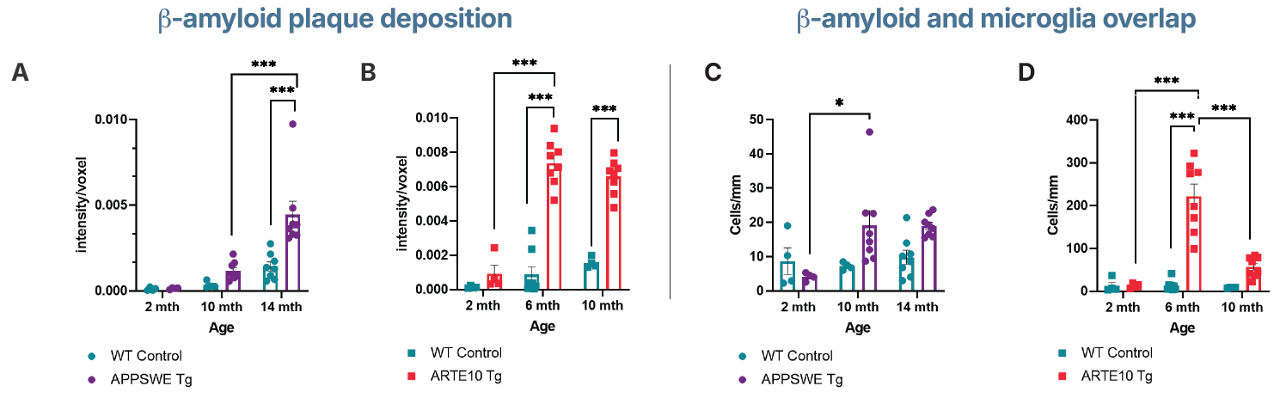

Figure 2. β-Amyloid Plaque Deposition and Microglia Co-localization in APPSWE and APP/PS1 (ARTE10) mice.
Intensity of plaques per voxel (A and B) and density of microglia cells on plaques (C and D) calculated for the entire hippocampus per animal (n=4-8 per group) for the APPSWE model (A and C) and APP/PS1 (ARTE10) model (B and D). Plaque deposition was significantly increased relative to wild type (WT) controls by 6 months of age for APP/PS1 (ARTE10) mice (B), whereas plaques were not significantly increased in the APPSWE mice until 14 months of age (A). Microglia overlap with plaques differently in the APPSWE and APP/PS1 (ARTE10) models, following a U-shaped function in the APP/PS1 (ARTE10) mice specifically (D). Similar findings were found in the cerebral cortex.


Please rotate your device to view this table.

Table 1. Mouse Models for Alzheimer's Research

PathwayModelGenetic alteration (short)Typical pathologySupporting use for FDA-approved Drugs
AmyloidAPPSWE (Tg2576)APPswe overexpression (PrP promoter)Aβ plaques by ~11-13 mo; gliosis; memory deficits"Aducanumab Lecanemab"
PDAPP (J20)APP V717F (Indiana) overexpression (PDGF-β promoter)Aβ plaques; synaptic/memory deficitsDonanemab
APPArcSwe (Arc/Swe)APP E693G (Arctic) + KM670/671NL (Swedish) overexpressionAβ protofibrils; plaquesLecanemab
AppNL-G-F (KI)APP KI: Swedish (NL), Arctic (G), Iberian (F)Robust Aβ pathology without overexpression
AppNL-F (KI)APP KI: Swedish (NL) + Iberian (F)Aβ pathology (later than NL-G-F)
APP23APPswe overexpression (Thy1 promoter)Aβ plaques; neuron loss (older ages)
CombinationARTE10
(aka APP/PS1 (line 85))
APPswe + PS1dE9 overexpressionAβ plaques; synaptic deficits
3xTg-ADAPPswe + PS1(M146V) KI + Tau(P301L)Aβ plaques + tau pathology
5xFAD (Tg6799)APP (Swedish, Florida, London) + PSEN1 (M146L, L286V) overexpressionEarly, aggressive Aβ plaques; cognitive deficits
TauTau (JNPL3)Carries the transgene for the human P301L mutation of MAPTNeurofibrillary tangles; behavioral & motor disturbances
PS19 (tau P301S)MAPT P301S overexpressionTauopathy; neurodegeneration
rTg4510 (tau P301L)Tet-off MAPT P301L overexpressionTau tangles; neuron loss

Development of Refined Techniques

Sagittal view of whole-brain imaging of β-amyloid (cyan) and astrocytes (GFAP, magenta) in APP/PS1 (ARTE10) mice.

Horizontal view of whole-brain imaging of β-amyloid (cyan) and microglia (IBA1, magenta) in APP/PS1 (ARTE10) mice.

Figure 3a. Whole-brain 3D light Sheet Microscopy of β-amyloid, Astrocytes, and Microglia in Aged ARTE10 Brains.

Figures 2-3 generated in collaboration with LifeCanvas Technologies


Figure 3b. Whole-brain 3D light Sheet Microscopy of β-amyloid, Astrocytes, and Microglia in Aged APP/PS1 (ARTE10) Brains.

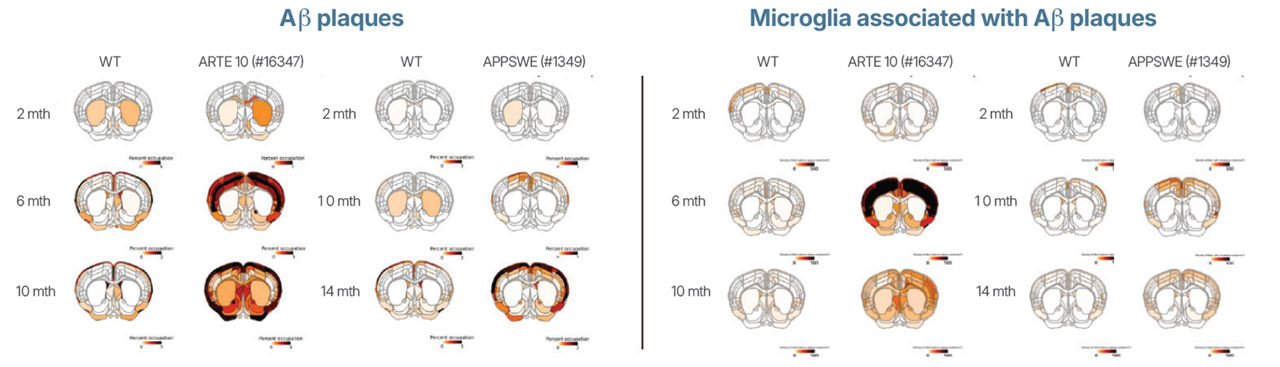

Heatmaps (25 m sections) generated from image registration to the Allen Brain Atlas and segmentation analyses of plaque deposition (SmartAnalytics) for control wild type (WT) and APPSWE and APP/PS1 (ARTE10) transgenic mice highlight increased plaque deposition in cortical regions in APP/PS1 (ARTE10) mice >6 mo and at >14 mo in the APPSWE mice. Similar findings were found in the hippocampus.

Discussion

  • While decades of Alzheimerʼs disease (AD) research in mouse models have yielded invaluable mechanistic insights, translation to successful clinical therapies remains limited. A key contributor to this gap is the physiological divergence between current models and the human disease trajectory. Many established transgenic lines exhibit early and aggressive amyloid deposition or Tau pathology, often driven by supraphysiological overexpression of mutant human genes that represent rare familial forms of AD. These models accelerate pathology for experimental practicality but fail to capture the gradual, age-dependent progression and heterogeneous staging observed in sporadic, late-onset AD—the form that predominates in patients.
  • Moreover, current models frequently lack important comorbid features such as cerebrovascular dysfunction, metabolic impairment, and microglial and astrocytic diversity that evolve over the human disease course. As clinical diagnostic frameworks increasingly emphasize biomarker-based staging (e.g., A/T/N systems reflecting amyloid, Tau, and neurodegeneration status), preclinical models must evolve to reflect these dynamic, overlapping pathological phases.
  • Future efforts should prioritize physiologically relevant systems that integrate humanized immune and glial components, age-appropriate gene regulation, and progressive pathology across molecular and functional domains. Knock-in models, induced pluripotent stem cell (iPSC)-derived chimeras, and multi-omic longitudinal mapping in rodents offer promising avenues to align preclinical staging with clinical phenotypes. By developing models that more faithfully mirror disease initiation, propagation, and symptomatic progression, the field can improve predictive validity and ultimately enhance the translational success of Alzheimerʼs therapeutics.

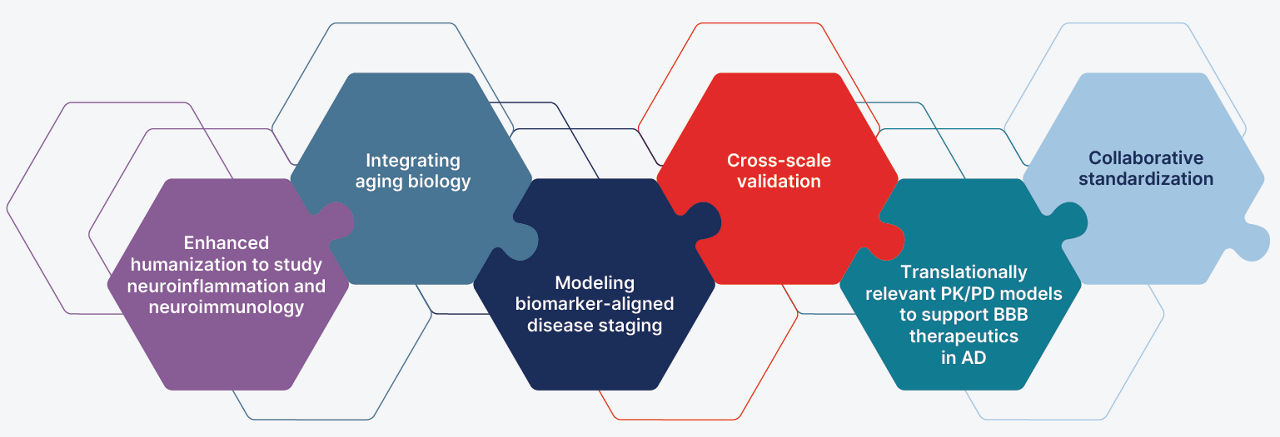

Future Directions

To advance translational relevance, next-generation Alzheimer's disease models should move beyond single-pathway paradigms toward systems that reflect the temporal and biological complexity of human disease.
Key priorities include:
