Collaboration with Transpharmation Unveils Early Alzheimer's Biomarkers: Using the ARTE10 (APP-PS1) Mouse Model

Taconic and Transpharmation scientists demonstrate how to behaviorally and biochemically characterize the ARTE10 (APP-PS1) mouse model across three-time points relating to the early, middle, and late stages of amyloid progression.

Have questions on the ARTE10 (APP-PS1) Mouse? Connect with an expert today

logo



ARTE10 Mouse Model Data

Background

  • The ARTE10 double transgenic mouse model expresses mutant forms of human APP (Swedish mutation) and human Presenilin 1 carrying the M146 mutation (PSEN1)
  • The ARTE10 model is a translational preclinical model for studying Alzheimer's disease
  • There is limited data available on several behavioral assays and relevant biomarkers across different time points in the ARTE10 model.

Aim

  1. To behaviorally and biochemically characterize the ARTE10 model across three-time points relating to early, middle, and late stages of amyloid progression (5, 10, 15 months of age, respectively).

Conclusions and Next Steps

  • At 5 months of age, ARTE10 mice exhibit increased anxiety-like behaviors, hyperactivity, deficits in sensory motor gating, and spatial working memory deficits.
  • At 5 months of age, ARTE10 mice already exhibit biomakers relevant to Alzheimer’s disease, including an increase in amyloid load in the hippocampus and cortex, and trending differences in NfL and cytokines.
  • The behavioral phenotype of ARTE10 mice at 10 months of age is summarized in the table below.
  • Additional behavioral and biochemical data at 10 and 15 months of age will be updated here when available.

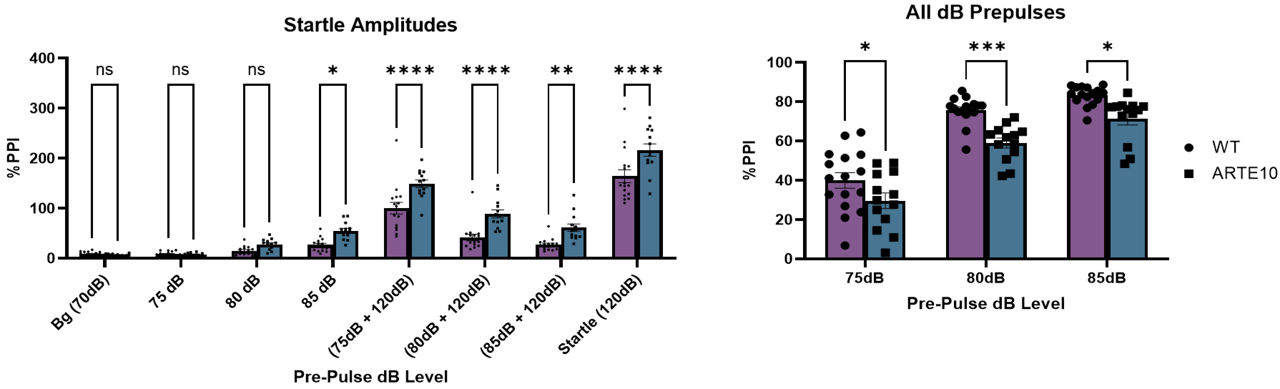

Sensory motor gating- Prepulse inhibition (PPI)

Increased startle response in ARTE10 compared to WT

Reduced PPI in ARTE10 compared to WT

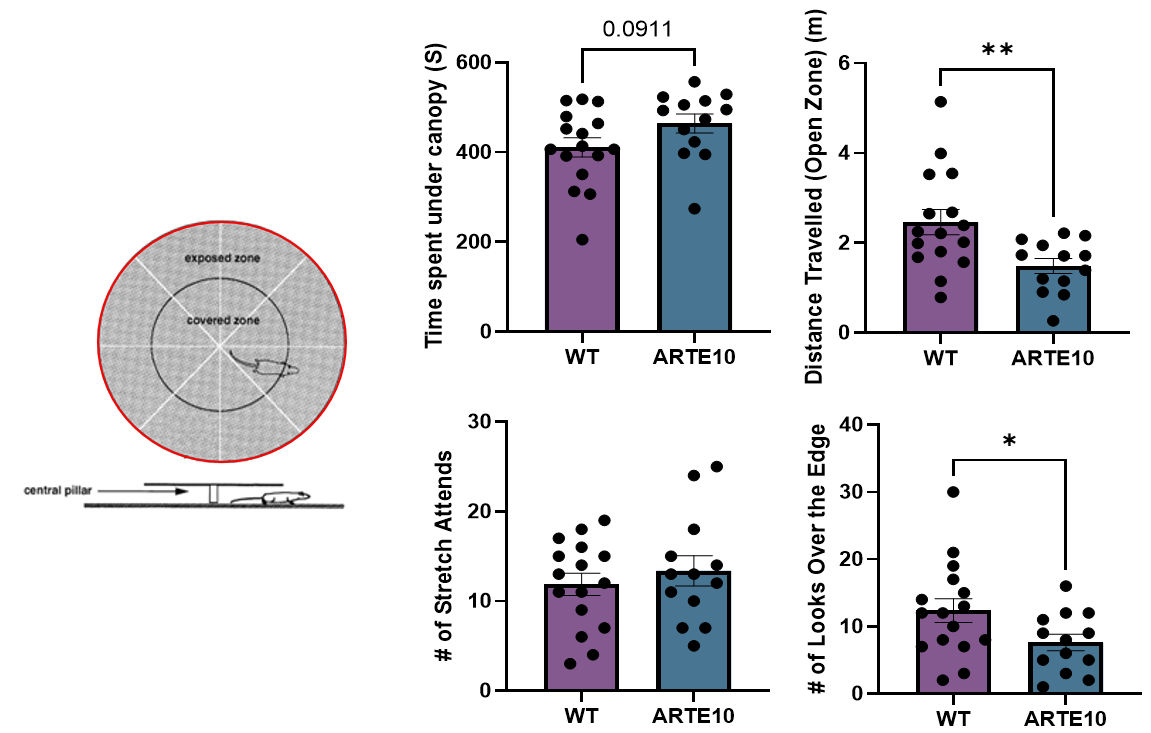

Anxiety-like Behavior - Canopy Test

Trending or increased signs of anxiety-like behavior and reduced risk-taking in ARTE10

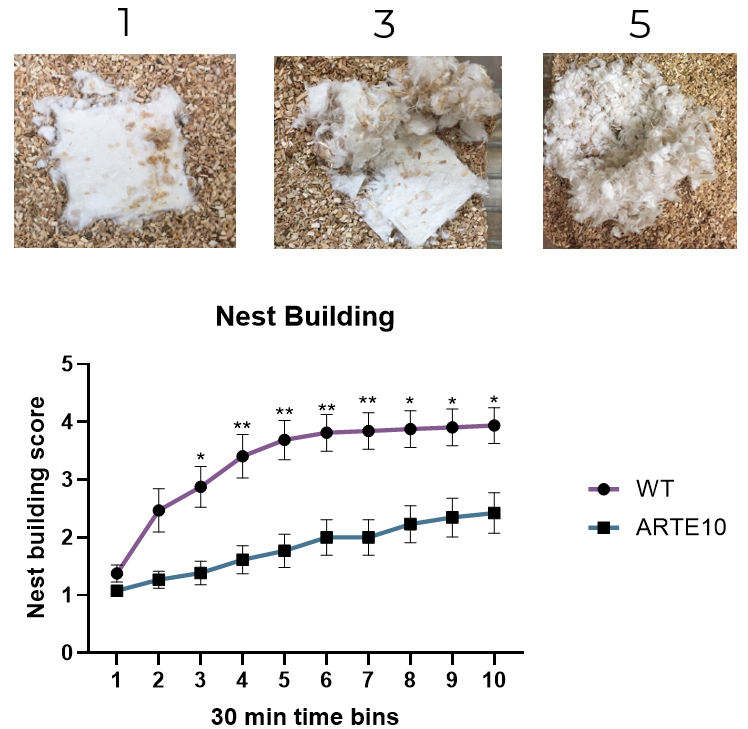

Well-being-like Behavior - Nest Building

Reduced nest building (scores range from 1-5) in ARTE10 compared to WT

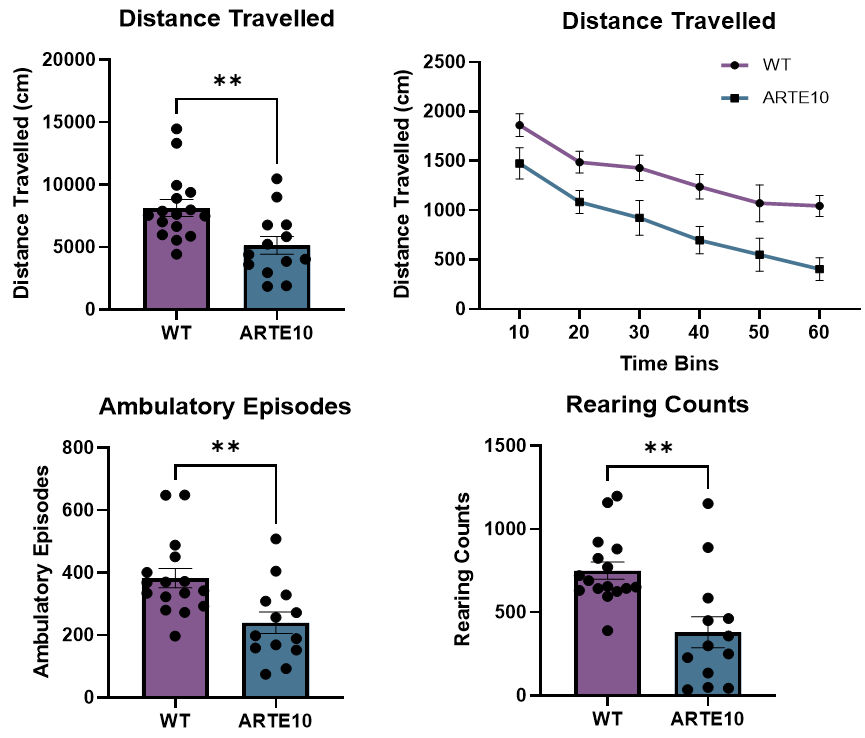

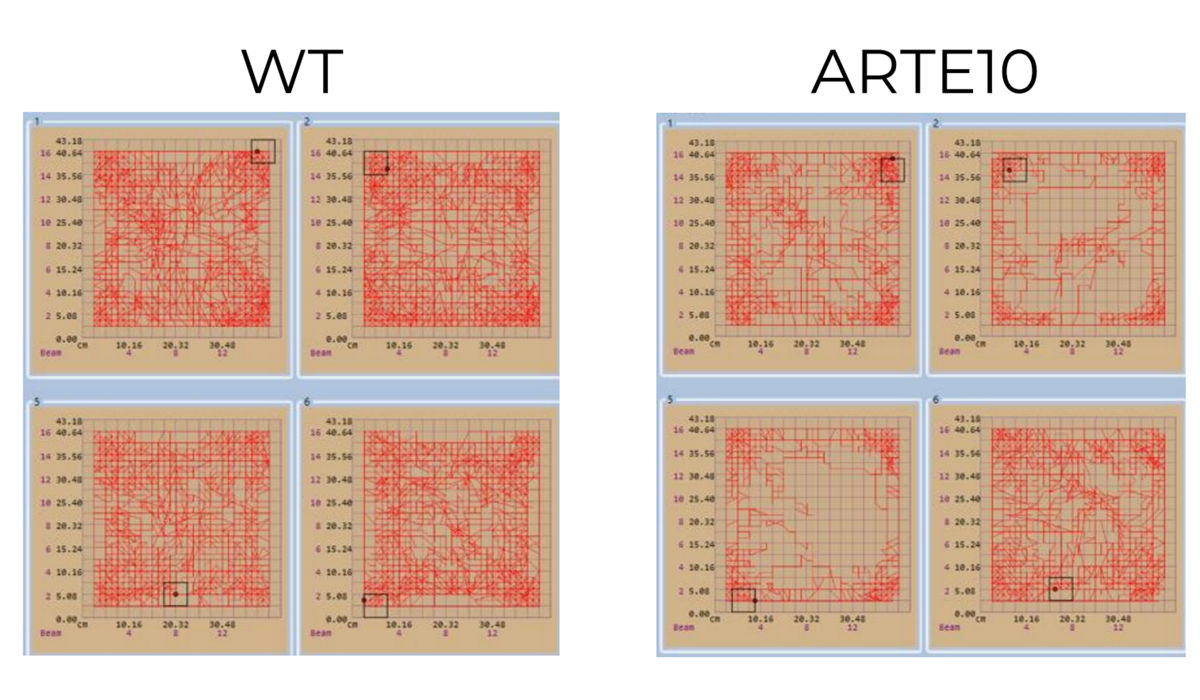

Motor Function - Locomotor Activity (LMA)

Hypolocomotion in ARTE10 mice, could be due to increased anxiety-like behavior in a novel environment

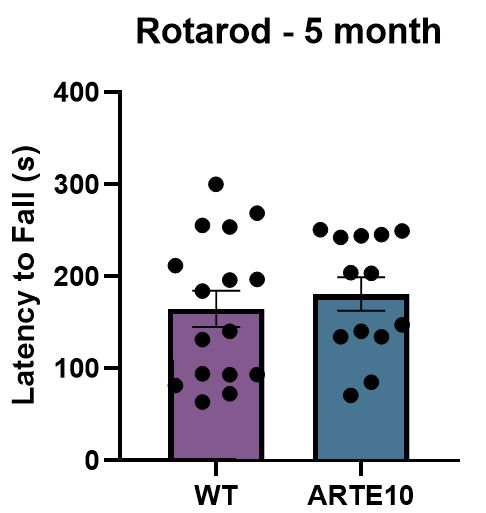

Motor Function - Rotarod

No differences

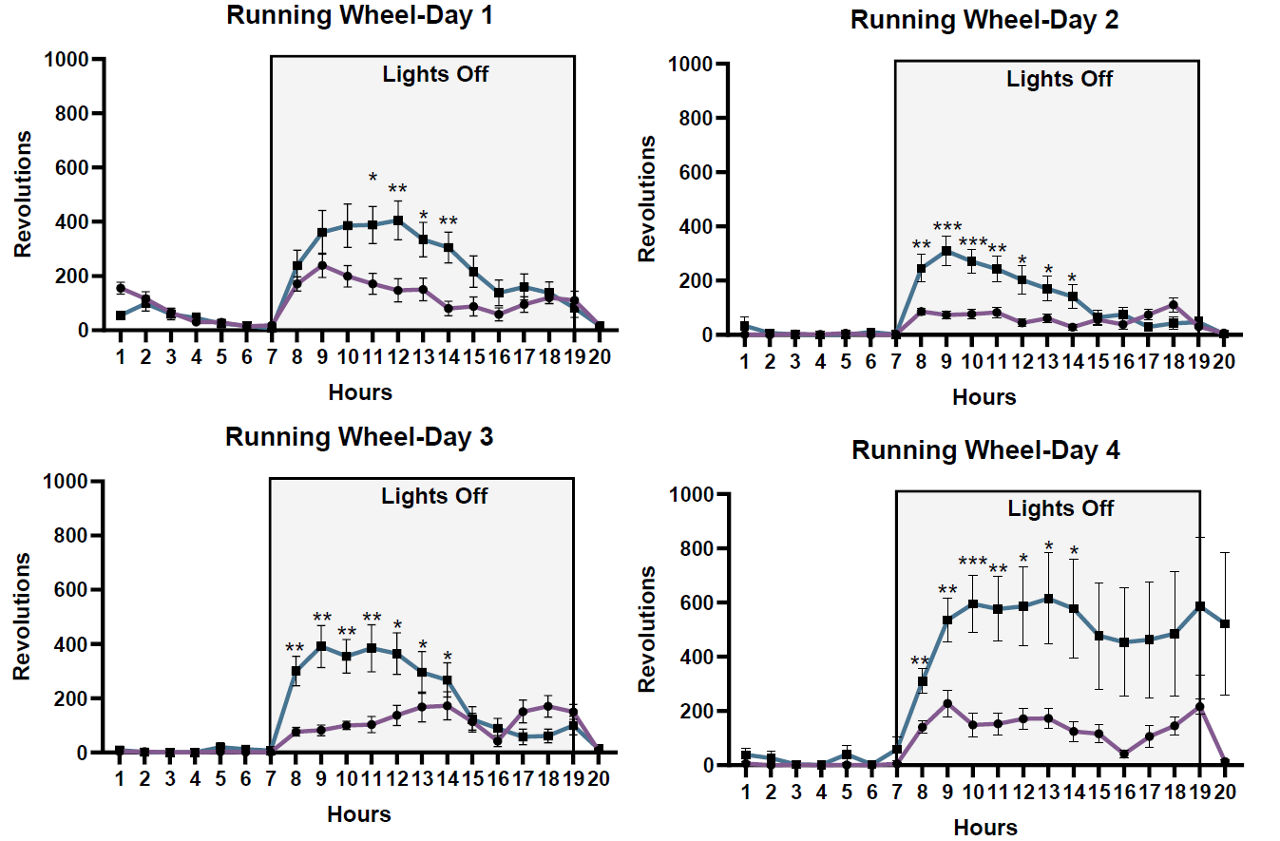

Motor Function - Running Wheel (20 hour recordings)

ARTE10 mice are hyperactive on the running wheel

Supports the hypothesis that LMA hypoactivity may be anxiety-induced

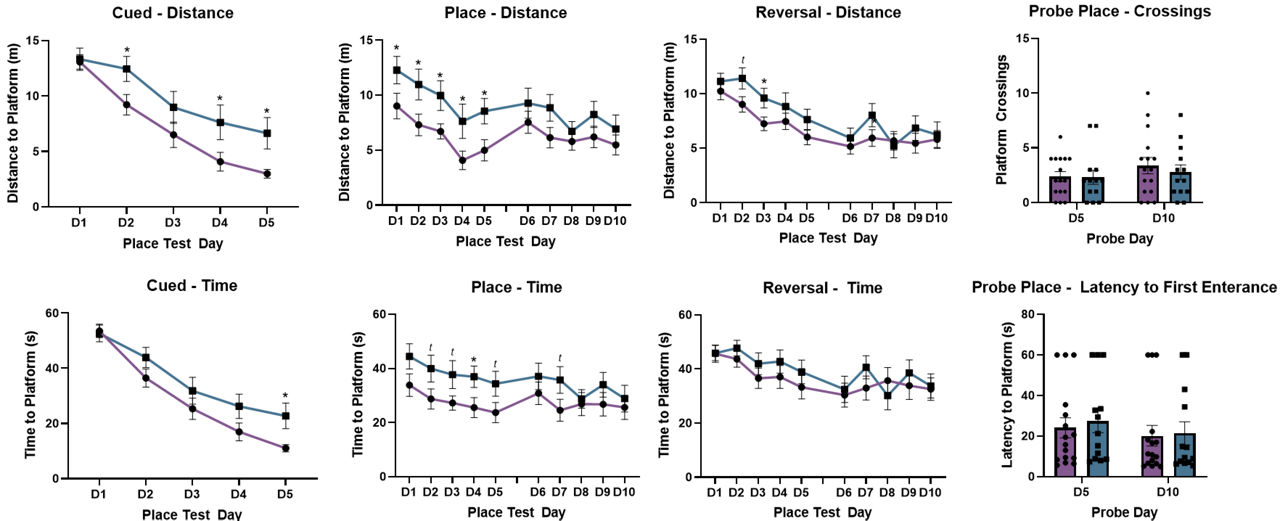

Learning and Memory - Morris Water Maze

Spatial working memory is impaired in cued learning and place learning in ARTE10 mice

Reversal learning is partially impaired in ARTE10 mice

To be completed: Reversal probe test, search strategies


ARTE10 Behavioral Summary

IndicationTestARTE10 EffectSignificance
5 months of age10 months of age
AnxietyCanopy Test↑↑ARTE10 – increased anxiety-like behavior
Motivation/MoodNest BuildingDecreased motivation/mood (increased latency to nest and lower nest scores)
Sensory Motor gatingPPIDeficits in sensory motor gating (reduced pre-pulse inhibition)
ActivityLMAHypolocomotion
Motor FunctionRotarodNSNSNo motor impairments
ActivityRunning WheelHyperactive
LearningMWMSpatial working memory deficit
Memory

MWM

Y-Maze

NS

NS

Impaired working memory by 10 months

MWM: Morris Water Maze, PPI: Pre-pulse inhibition, LMA: Locomotor Activity, NS: not significant

Biomarkers

Plasma

CSF

Right hippocampus

Right cortex

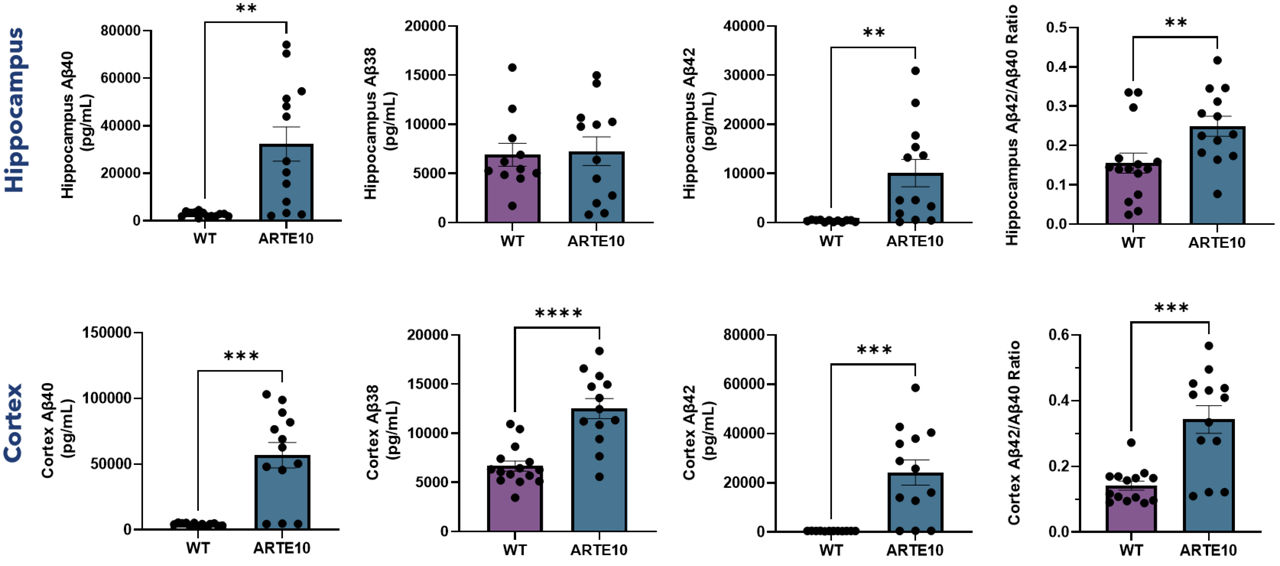

Amyloid Load in Brain

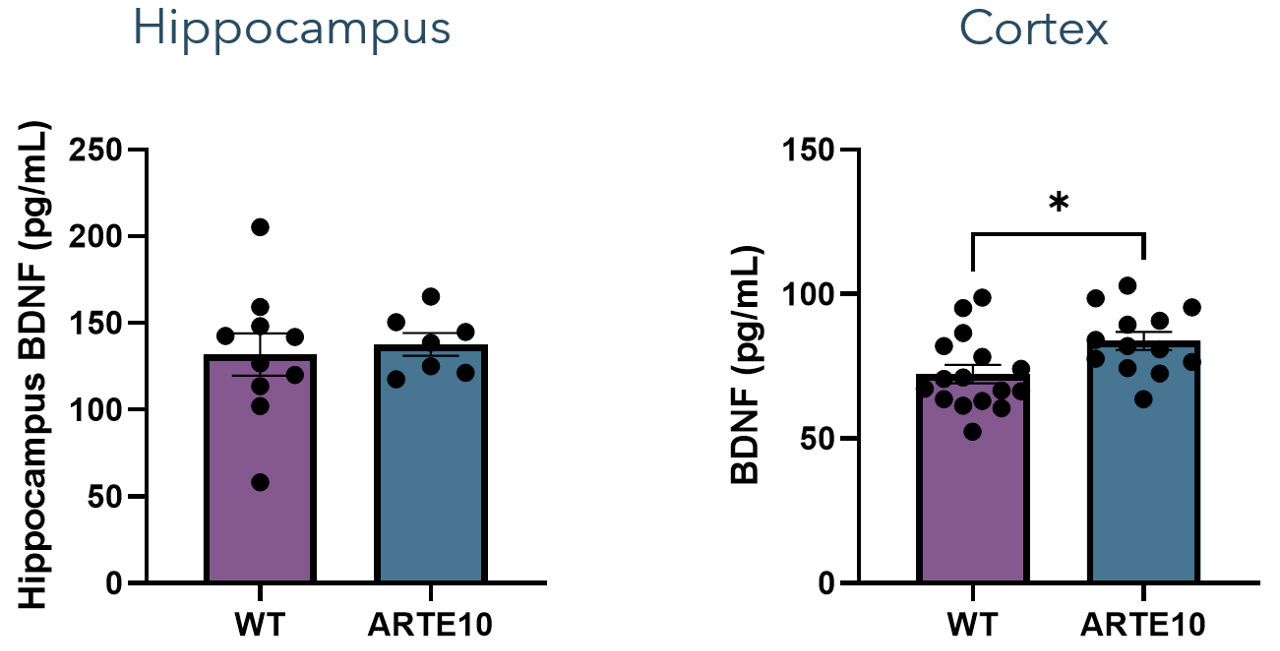

BDNF in Brain

BDNF levels in hippocampus and cortex were quantified using the MSD kit. Normality was assessed by the Shapiro-Wilk test. Data were considered parametric and were analyzed by unpaired t test. An alpha level of 0.05 was used as criterion for statistical significance. All data are presented as mean + SEM. * p<0.05

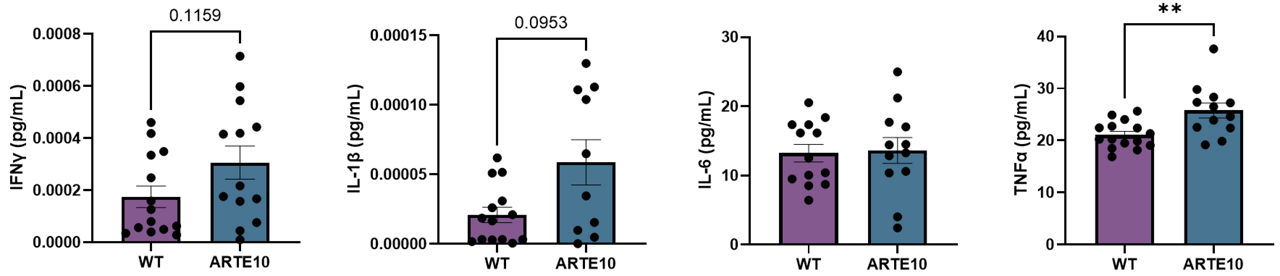

Cytokines in Plasma

IFNγ, IL-1β, IL-6 and TNFα levels in plasma were quantified using the MSD kit. Normality was assessed by the Shapiro-Wilk test. IFNγ and IL-1β data were considered non-parametric and were analyzed by nonparametric Mann Whitney test. IL-6 and TNFα data were considered parametric and were analyzed by Welch’s t test. An alpha level of 0.05 was used as criterion for statistical significance. All data are presented as mean + SEM. Outliers were removed using ROUT (Q=5%). ** p<0.01

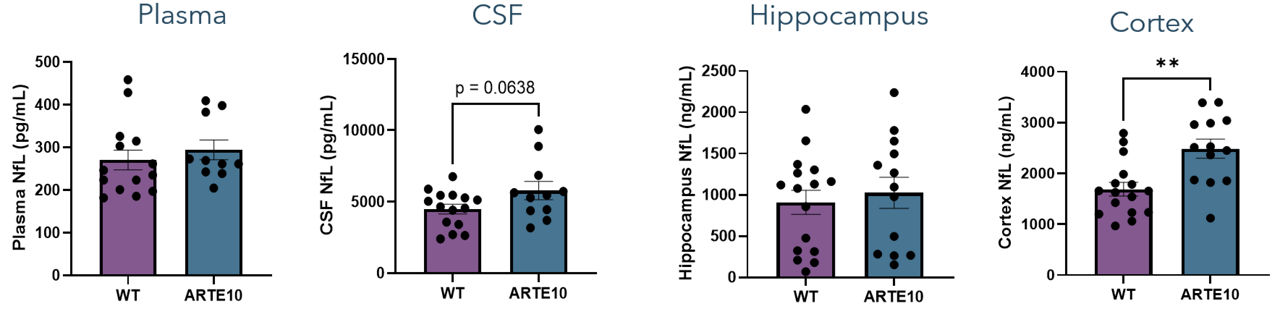

Neurofilament L (NfL)

Nfl levels in plasma, CSF, hippocampus and Cortex were quantified using the MSD kit. Normality was assessed by the Shapiro-Wilk test. Plasma data were considered non-parametric and were analyzed by nonparametric Mann Whitney test. CSF, Hippocampus and Cortex data were considered parametric and were analyzed by unpaired t test with Welch’s Correction. An alpha level of 0.05 was used as criterion for statistical significance. All data are presented as mean + SEM. Outliers were removed using ROUT (Q=5%). **p<0.01


Biomarker Summary

BiomarkerSample TypeSignificance
NfLPlasmaNS
CSFTrending ↑
HippocampusNS
Cortex
IFNYPlasmaNS
IL-1BPlasmaTrending ↑
IL-6PlasmaNS
TNF-aPlasma
AB40Hippocampus
Cortex
AB38HippocampusNS
Cortex
AB42Hippocampus
Cortex
AB42/AB40 RatioHippocampus
Cortex
