This poster was presented at the American Society of Gene and Cell Therapy (ASGCT) 2025. ASGCT highlights gene and cell therapy advancements, bringing together experts to share innovative therapies and translational research.

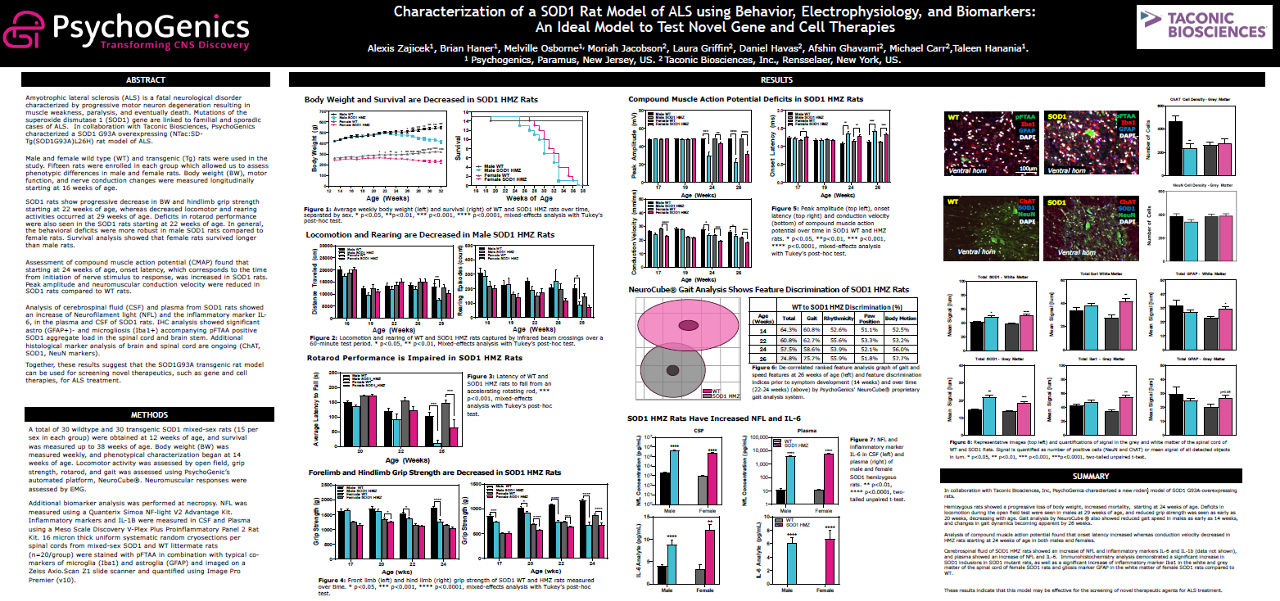

Scroll through the poster below, or download to learn more.
Alexis Zajicek1, Brian Haner1, Melville Osborne1, Moriah Jacobson2, Laura Griffin2, Afshin Ghavami2, Michael Carr2, Taleen Hanania1
1 PsychoGenics
2 Taconic Biosciences, Inc.
Amyotrophic lateral sclerosis (ALS) is a fatal neurological disorder characterized by progressive motor neuron degeneration resulting in muscle weakness, paralysis, and eventually death. Mutations of the superoxide dismutase 1 (SOD1) gene are linked to familial and sporadic cases of ALS.In collaboration with Taconic Biosciences, PsychoGenics characterized a SOD1 G93A overexpressing (NTac:SD-Tg(SOD1G93A)L26H) rat model of ALS.
Male and female wild type (WT) and transgenic (Tg) rats were used in the study. Fifteen rats were enrolled in each group which allowed us to assess phenotypic differences in male and female rats. Body weight (BW), motor function, and nerve conduction changes were measured longitudinally starting at 16 weeks of age.
SOD1 rats show progressive decrease in BW and hindlimb grip strength starting at 22 weeks of age, whereas decreased locomotor and rearing activities occurred at 29 weeks of age. Deficits in rotarod performance were also seen in the SOD1 rats starting at 22 weeks of age. In general, the behavioral deficits were more robust in male SOD1 rats compared to female rats. Survival analysis showed that female rats survived longer than male rats.
Assessment of compound muscle action potential (CMAP) found that starting at 24 weeks of age, onset latency, which corresponds to the time from initiation of nerve stimulus to response, was increased in SOD1 rats. Peak amplitude and neuromuscular conduction velocity were reduced in SOD1 rats compared to WT rats.
Analysis of cerebrospinal fluid (CSF) and plasma from SOD1 rats showed an increase of Neurofilament light (NFL) and the inflammatory marker IL-6, in the plasma and CSF of SOD1 rats. IHC analysis showed significant astro (GFAP+)- and microgliosis (Iba1+) accompanying pFTAA positive SOD1 aggregate load in the spinal cord and brain stem. Additional histological marker analysis of brain and spinal cord are ongoing (ChAT, SOD1, NeuN markers).
Together, these results suggest that the SOD1G93A transgenic rat model can be used for screening novel therapeutics, such as gene and cell therapies, for ALS treatment.
A total of 30 wildtype and 30 transgenic SOD1 mixed-sex rats (15 per sex in each group) were obtained at 12 weeks of age, and survival was measured up to 38 weeks of age. Body weight (BW) was measured weekly, and phenotypical characterization began at 14 weeks of age. Locomotor activity was assessed by open field, grip strength, rotarod, and gait was assessed using PsychoGenic’s automated platform, NeuroCube®. Neuromuscular responses were assessed by EMG.
Additional biomarker analysis was performed at necropsy. NFL was measured using a Quanterix Simoa NF-light V2 Advantage Kit. Inflammatory markers and IL-1B were measured in CSF and Plasma using a Meso Scale Discovery V-Plex Plus Proinflammatory Panel 2 Rat Kit. 16 micron thick uniform systematic random cryosections per spinal cords from mixed-sex SOD1 and WT littermate rats (n=20/group) were stained with pFTAA in combination with typical co-markers of microglia (Iba1) and astroglia (GFAP) and imaged on a Zeiss Axio.Scan Z1 slide scanner and quantified using Image Pro Premier (v10).

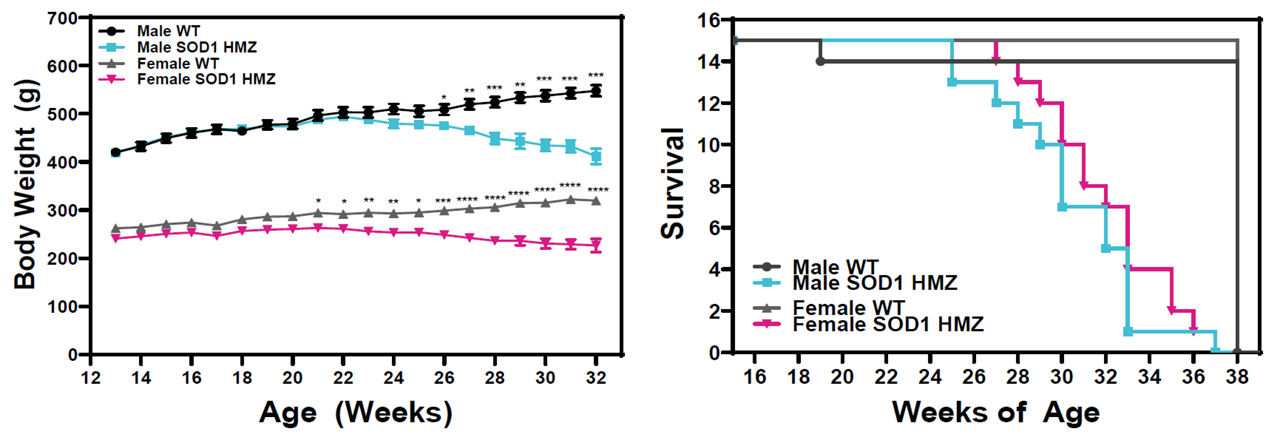

Fig 1: Average weekly body weight (left) and survival (right) of WT and SOD1 HMZ rats over time, separated by sex. *p<0.05, **p<0.01, *** p<0.001, **** p<0.0001, mixed-effects analysis with Turkey's post-hoc test.

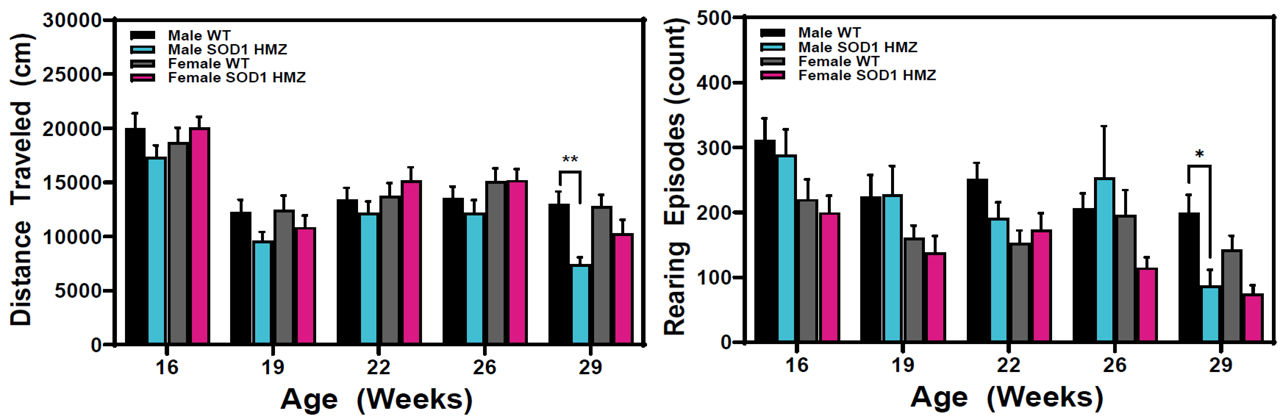

Fig 2: Locomotion and rearing of WT and SOD1 HMZ rats captured by infrared beam crossings over a 60-minute test period. * p<0.05, ** p<0.01, Mixed-effects analysis with Tukey’s post-hoc test.

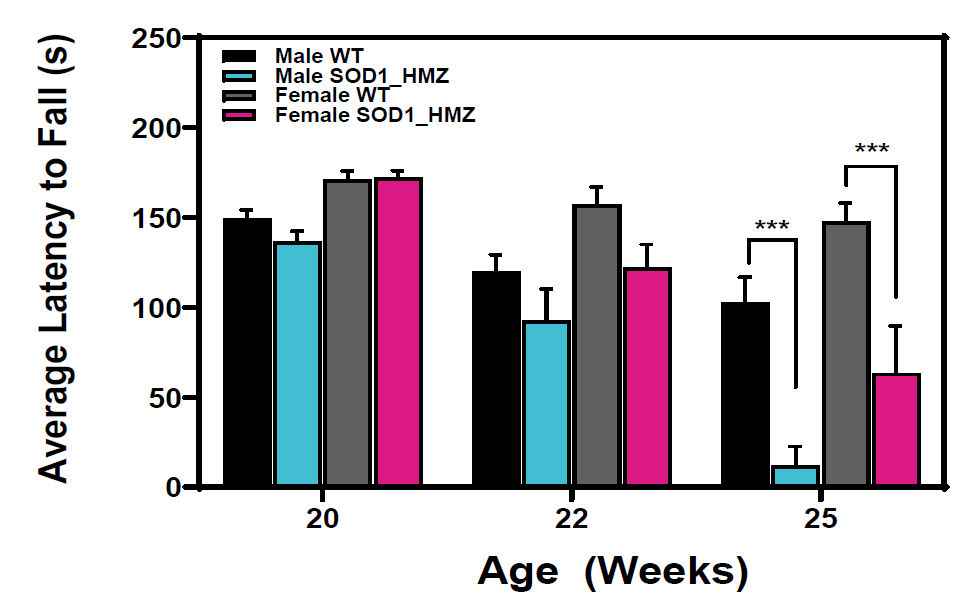

Fig 3: Latency of WT and SOD1 HMZ rats to fall from an accelerating rotating rod, *** p<0.001, mixed-effects analysis with Tukey’s post-hoc test.

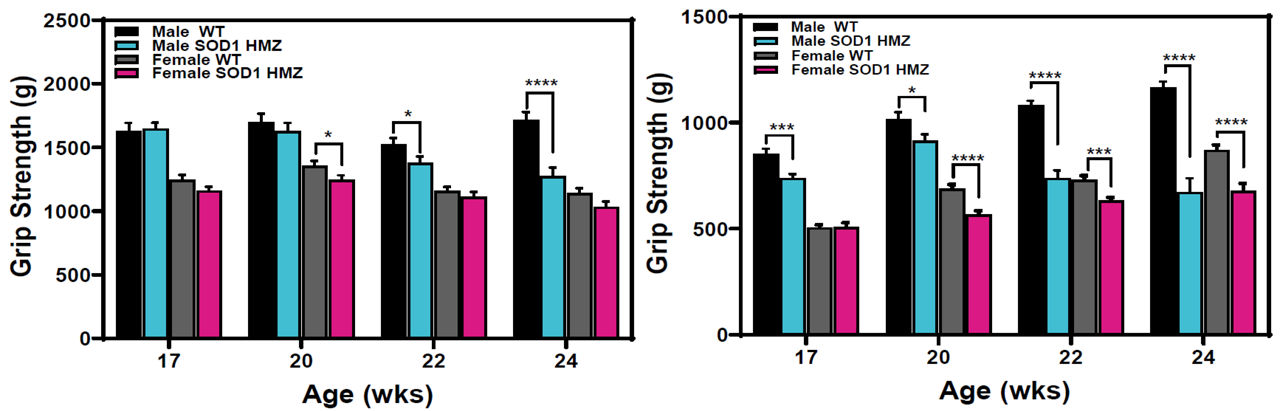

Fig 4: Front limb (left) and hind limb (right) grip strength of SOD1 WT and HMZ rats measured over time. * p<0.05, *** p<0.001, **** p<0.0001, mixed-effects analysis with Tukey’s post-hoc test.

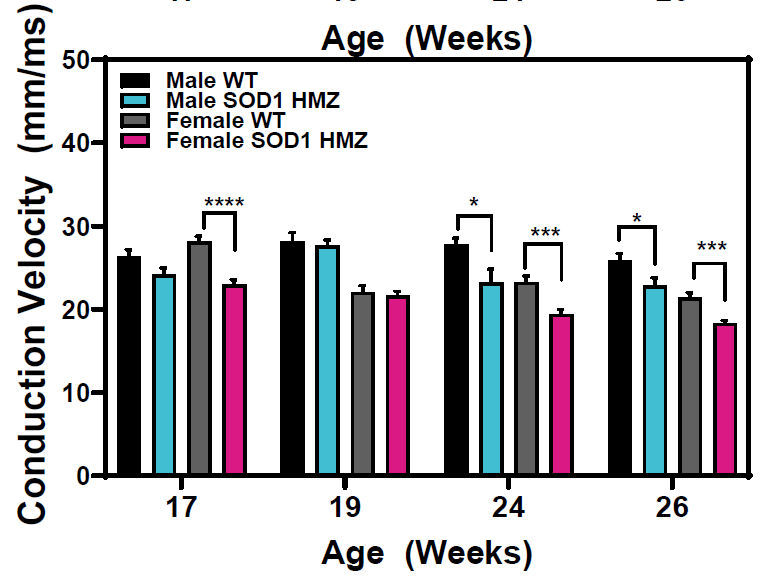

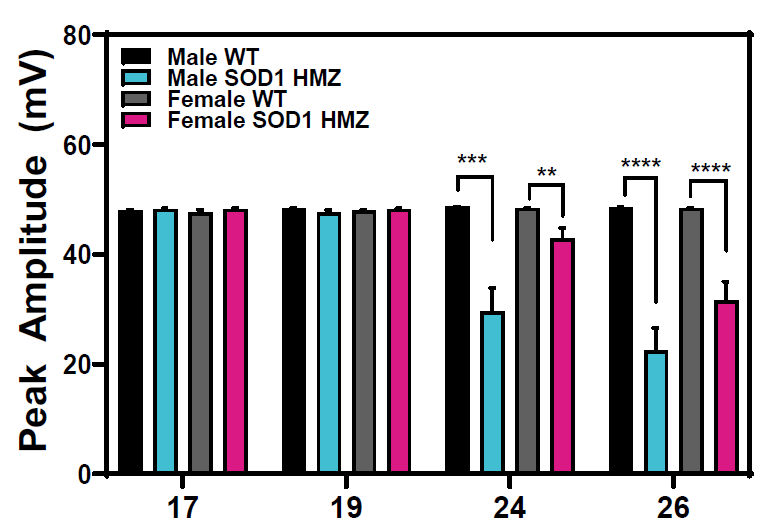

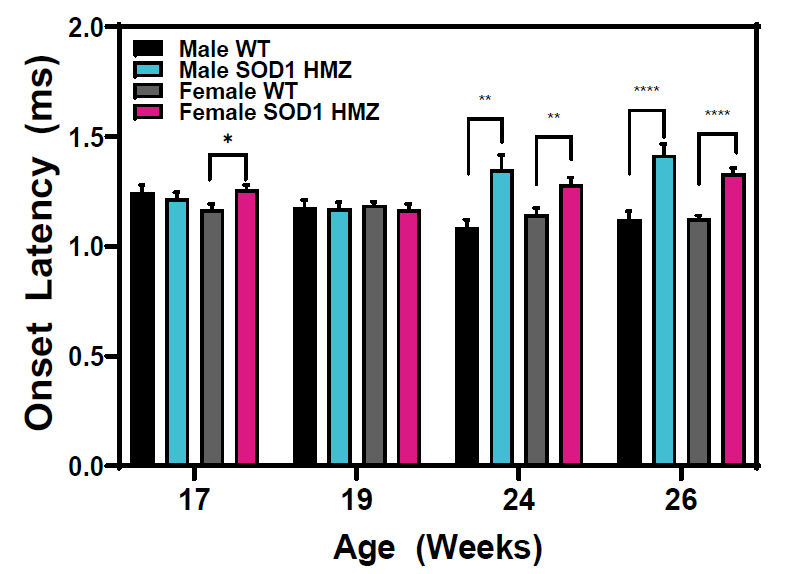

Fig 5: Peak amplitude (left), onset latency (middle) and conduction velocity (right) of compound muscle action potential over time in SOD1 WT and HMZ rats. * p<0.05, **p<0.01, *** p<0.001, **** p<0.0001, mixed-effects analysis with Tukey’s post-hoc test.

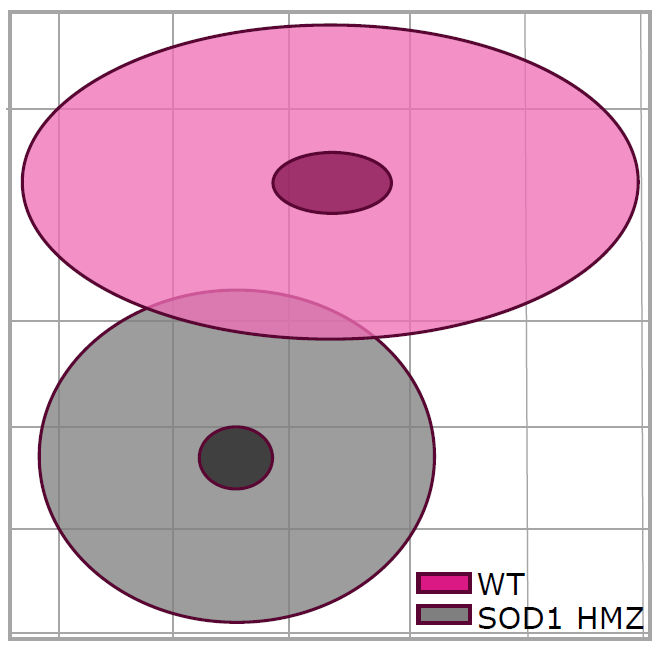

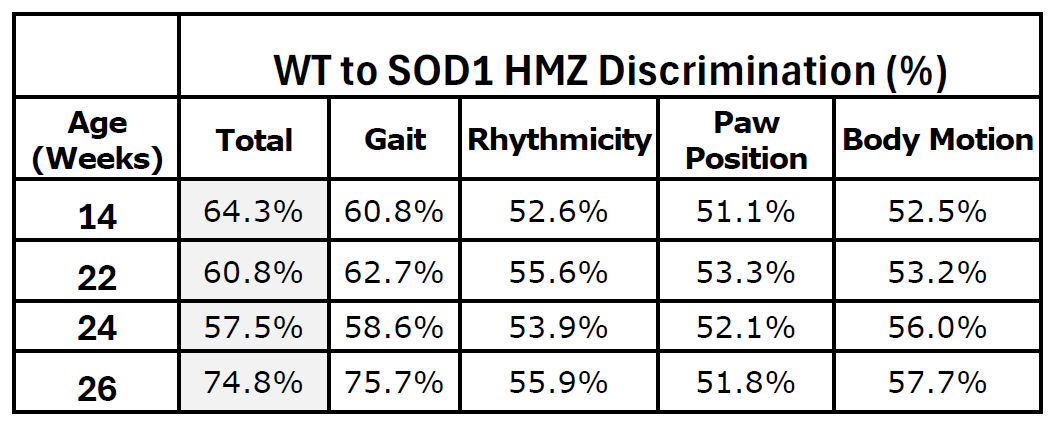

Fig 6: De-correlated ranked feature analysis graph of gait and speed features at 26 weeks of age (left) and feature discrimination indices prior to symptom development (14 weeks) and over time (22-24 weeks) (above) by PsychoGenics’ NeuroCube® proprietary gait analysis system.

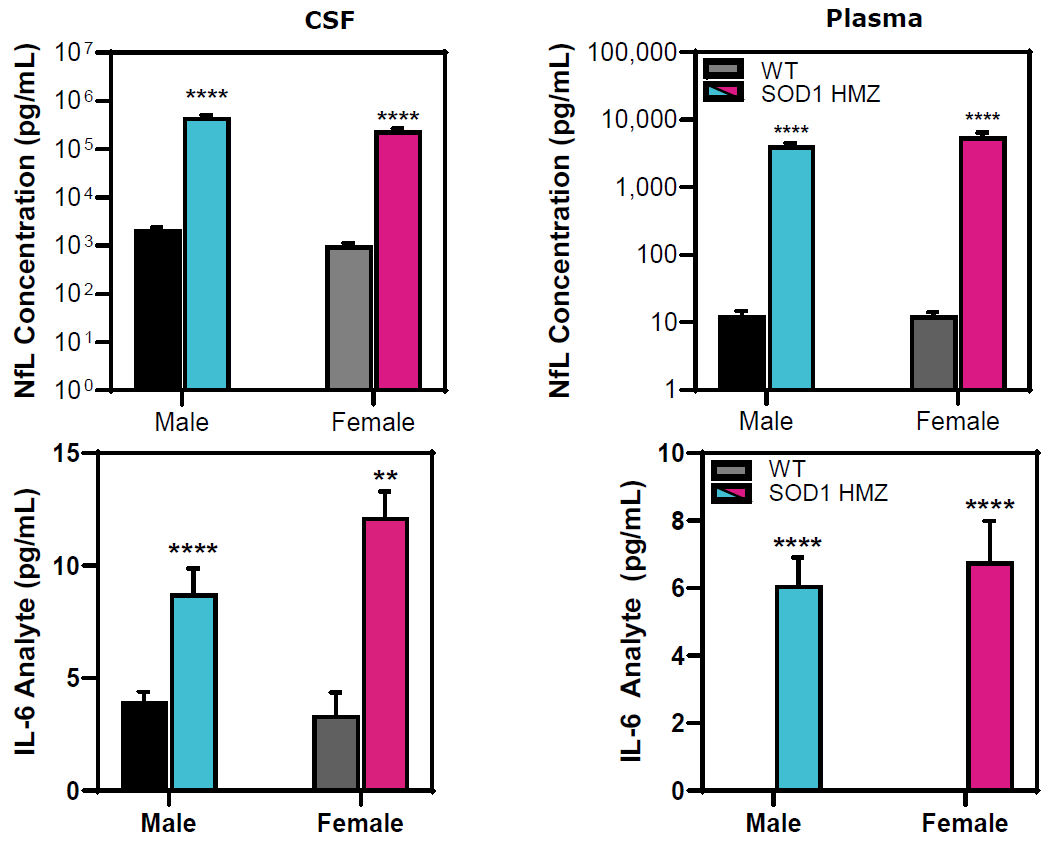

Fig 7: NFL and inflammatory marker IL-6 in CSF (left) and plasma (right) of male and female SOD1 hemizygous rats. ** p<0.01, **** p<0.0001, two-tailed unpaired t-test.

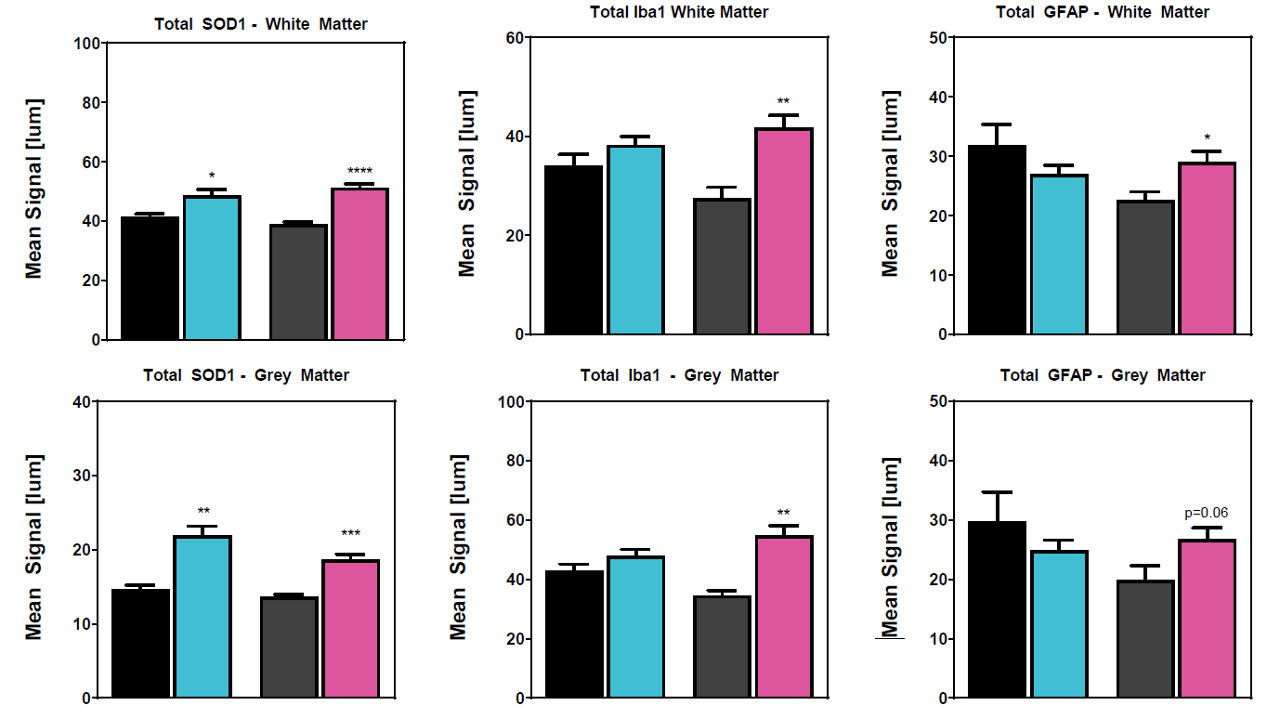

Fig 8: Representative images (left) and quantifications of signal in the grey and white matter of the spinal cord of WT and SOD1 Rats. Signal is quantified as number of positive cells (NeuN and ChAT) or mean signal of all detected objects in lum. * p<0.05, ** p<0.01, *** p<0.001, ***p<0.0001, two-tailed unpaired t-test.
In collaboration with Taconic Biosciences, Inc, PsychoGenics characterized a new rodent model of SOD1 G93A-overexpressing rats.
Hemizygous rats showed a progressive loss of body weight, increased mortality, starting at 24 weeks of age. Deficits in locomotion during the open field test were seen in males at 29 weeks of age, and reduced grip strength was seen as early as 20 weeks, decreasing with age. Gait analysis by NeuroCube ® also showed reduced gait speed in males as early as 14 weeks, and changes in gait dynamics becoming apparent by 26 weeks.
Analysis of compound muscle action potential found that onset latency increased whereas conduction velocity decreased in HMZ rats starting at 24 weeks of age in both males and females.
Cerebrospinal fluid of SOD1 HMZ rats showed an increase of NFL and inflammatory markers IL-6 and IL-1b (data not shown), and plasma showed an increase of NFL and IL-6. Immunohistochemistry analysis demonstrated a significant increase in SOD1 inclusions in SOD1 mutant rats, as well as a significant increase of inflammatory marker Iba1 in the white and grey matter of the spinal cord of female SOD1 rats and gliosis marker GFAP in the white matter of female SOD1 rats compared to WT.
These results indicate that this model may be effective for the screening of novel therapeutic agents for ALS treatment.
